MJOLNIR 5/10 AMPLIFIER

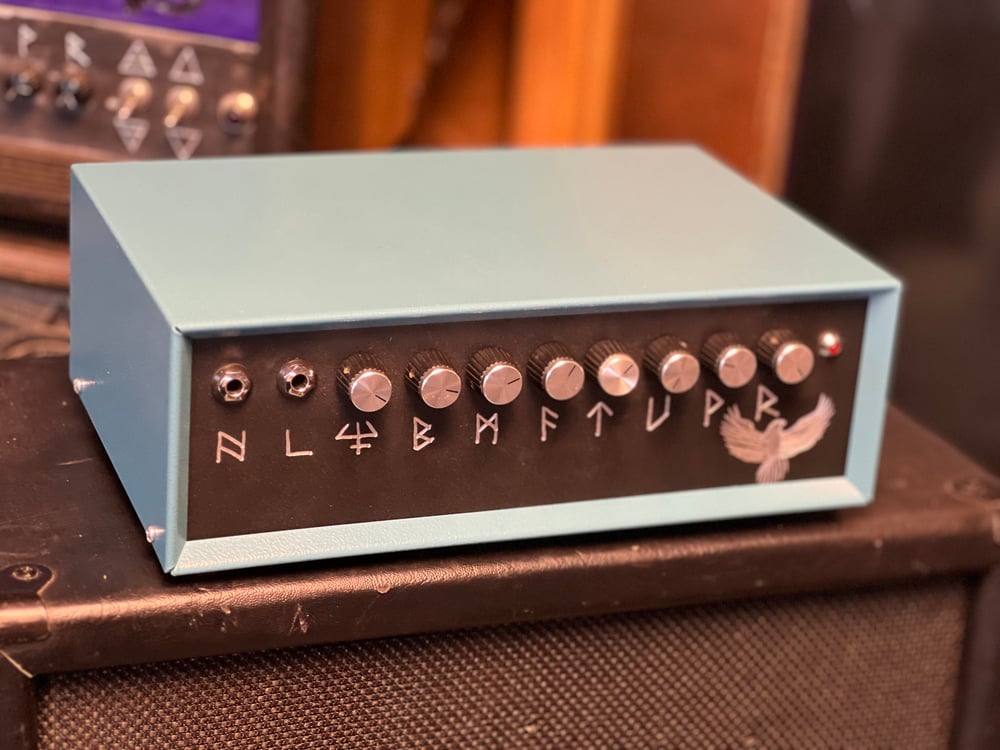

The HANDWIRED MJOLNIR 5
A truly lunch box size all tube, all handwired push/pull 12BH7 Amplifier. Quiet enough for an apartment but powerful enough to push a 212 and perfect for being run into an Fx loop of a larger amp so you can have YOUR tone anywhere in the world.
Classic British voicing made heavier with versatility of tone from clear chime to mountain leveling massiveness. Dummy load and 1/4” line out tapped from the OT for use as a preamp into any power amp or clean platform amp, slaved into an FX loop of another amp or run it into a DI box for silent recording. 8 and 16 ohm speaker outputs.

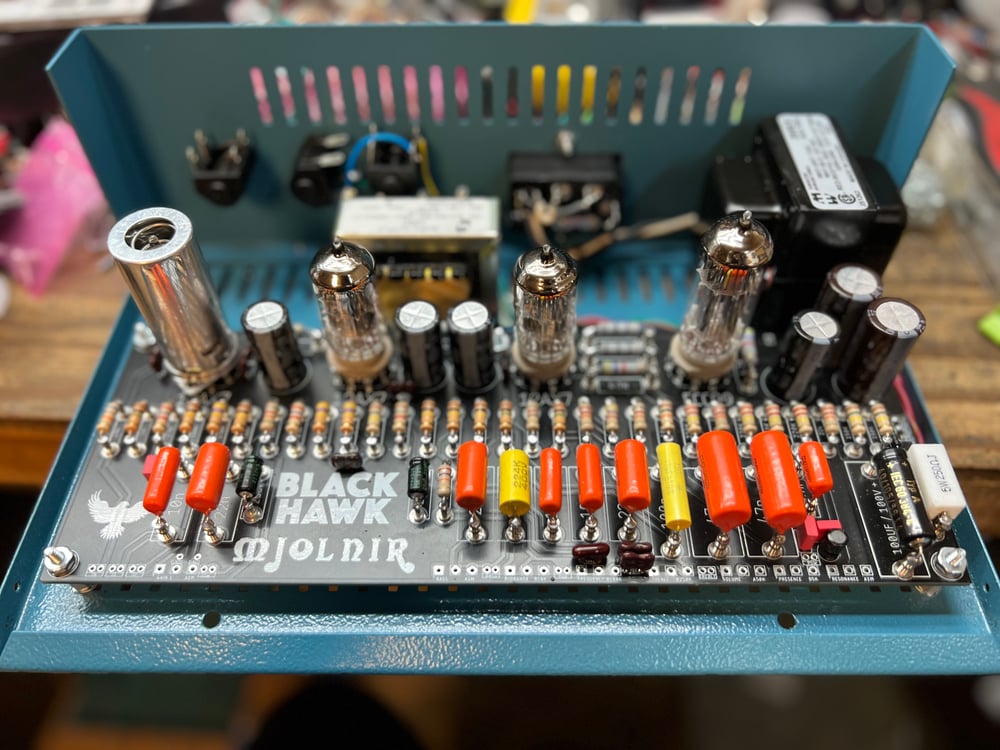

The PCB MJOLNIR 10 is the same turret mounted parts and circuit as the HANDWIRED version only with a high quantity 2oz copper PCB speeding up the process for both builder and customer.
Quicker turnaround with the same high quality at a lower cost.
The only difference is an ECC99 power tube and a bigger OT for higher headroom and double the wattage.

UNIVERSAL CONTROL TRANSLATOR FOR ALL BLACKHAWK PEDALS/AMPLIFIERS:

🔱=gain
V=volume
T=treble
B=bass
C=clean
M=midrange
O=octave
D=depth
F=frequency

The push/pull for gain changes the bias of the second gain stage from cold clipping to hot and adds an additional bypass capacitor to the third gain stage.

The treble, mid, bass and presence push/pulls change the frequency of those respective controls creating a HUGE variety of tones.

Please allow approximately 6-12 months build time for the handwired and 3-6 months for the PCB version (this varies and will be updated if build time changes)
